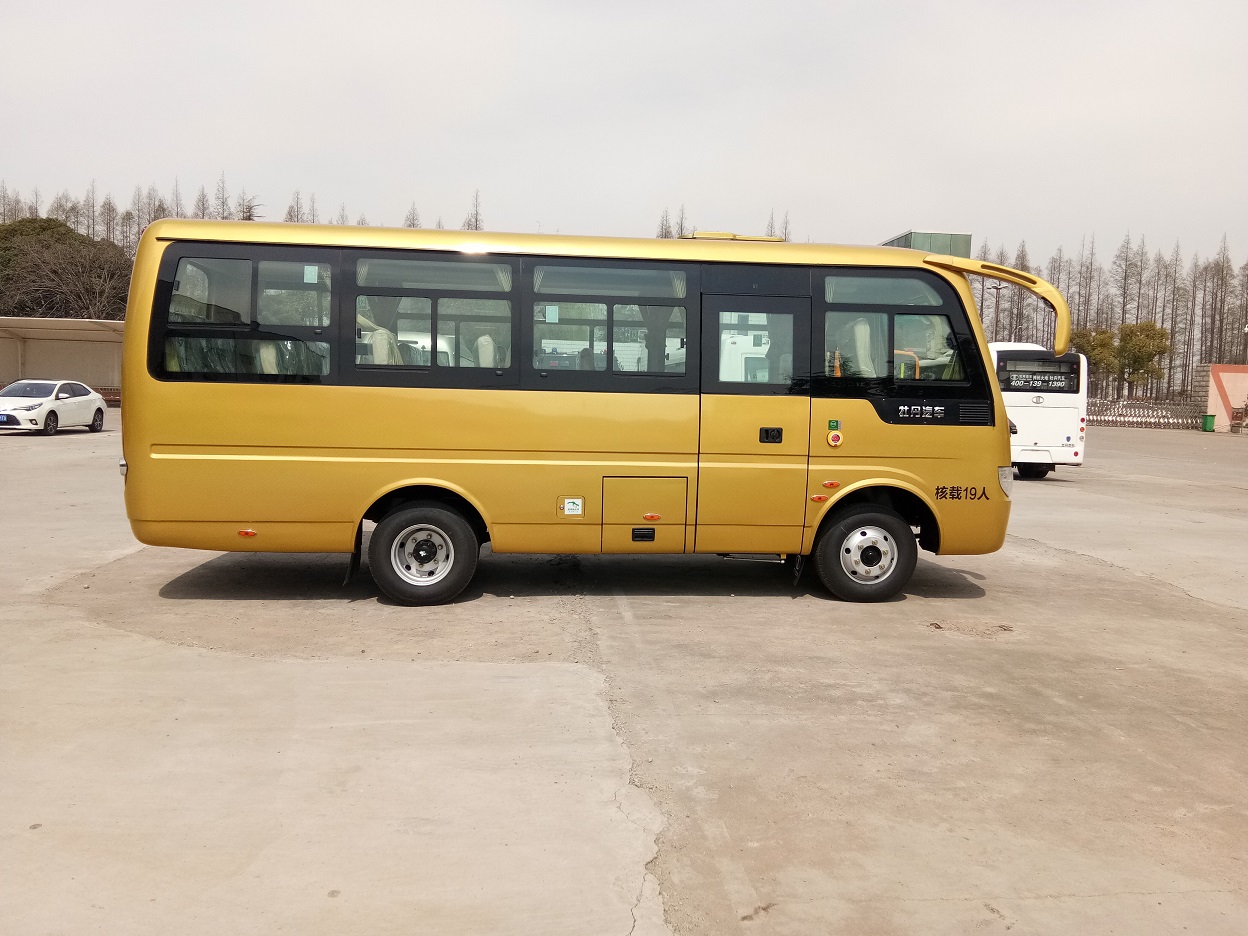

29 Passenger Van Star Minibus Left Hand Drive With Mitsubishi Engine

Brand Name : MUDAN

Model Number : L7 (MD6738)

Certification : ISO9001,CCC

Place of Origin : ZHANGJIAGANG,CHINA

MOQ : I UNIT

Price : negotiation

Payment Terms : T/T

Supply Ability : 10000 UNITS PER YEAR

Delivery Time : 35 WORKING DAYS

Packaging Details : BULK OR CONTAINER

Product Name : Mini bus

Model/ Type : Star

Length : 7.3 M

Engine type : Diesel

Seats capacity : 24~29 pcs

Gearbox : Manual

Engine model : ISF3.8S3141

Emission Level : Euro III

Displacement (cc) : 3800

Max. power (hp/rpm) : 143/2600 (105kw/2,600rpm)

Door : Two doors

Gross weight : 7500kg

Wheelbase : 3800mm

Contact Now

29 Passenger Van Star Minibus Left Hand Drive with Mitsubishi Engine





Quick Details:



1:  Right hand drive/Left hand drive

2:  Star type

3:  24~29 seats capacity

4:  7.3 meter length

5:  Cummins engine ISF3.8S

6:  School bus



Description:



The outstanding design comes from original star bus, By top level of accurate point welding & argon-arc welding technology, body pieces made by high-precision mould from Taiwan are welded together into a shell structure. This Unique body structure is helpful for reducing the rollover risk and low down vibratiion noise. Also the weight of bus is of 200~300 kg lower than traditional frame type body under same body strength.



Chassis are fully developed, engines installed are all proved to be of stable & quality by domestic market. Like Cummins engine, yuchai engine, isuzu technology engine from JMC... ...



All vehicles are treated with cathode electrophresis ,which highly improve the vehicle corrosion resistance.



 Specification:



Model

MD6738

 Overall Dimension

 Length (mm)

7,255

 Width (mm)

2,260

 Height (mm)

2,800/2980

 Wheel base (mm)

3,800

 Vehicle Weight

 Curb (kg)

5,000

 Gross (kg)

7,500

 Seating capacity

 Pc

24 ~29 seats capacity

 Fuel tank (L)

90

 Tires

 Quantity

6+1

 Size

7.50R16

 Engine

 Model

ISF3.8S3141

 Emission Level

Euro III

 Manufacturer

Cummins

 Displacement (cc)

3,800

 Max. power (hp/rpm)

143/2600 (105kw/2,600rpm)

 Max. torque (Nm/rpm)

450/1200~1600

 Gearbox

 LC6T55

 Brake

 Air brake

 Body Structure

 All metal type, semi-integral body



Standard Configuration

1. Laminated front windshield & tempered rear windshield

2. Aluminum sliding side window & metal bracket rear view mirror

3. One driver door, one manual folding passenger door

4. normal seat,2+2 layout, adjustable driver seats(back is adjustable)

5. Sunroof

6. PVC floor

7. MP3 player, 2 speakers

8. Defrosting system for front windshield

9. Rear luggage box

10. A/C interior





Optional equipments:

  • A/C
  • Exhaust brake
  • Electric/ Pneumatic folding door
  • Body anti-collision strip
  • Metallic paint
  • Pneumatic outer swinging door
  • MP5 player with 17” LCD monitor
  • Radial tires
  • Aluminum tire cover



Application:



1, Public transportation

2, Tourism mini bus

3, City bus
