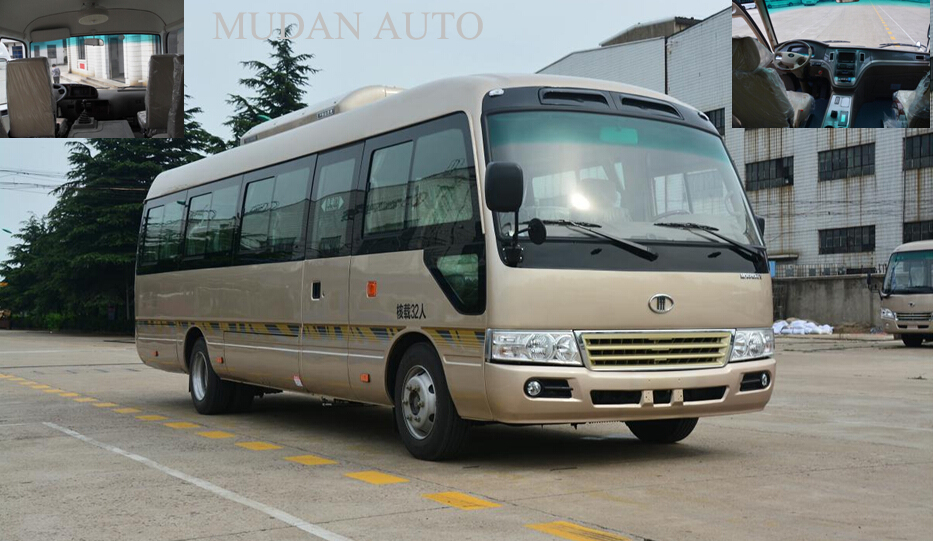

Staff Vehicle Air Conditioner Coaster Minibus Tourist City Trans Bus 3308mm Wheel Base
Quick Details:
1: 10~19 seats capacity
2: 6 meter coaster type
3: Isuzu technology diesel engine
4: Hydraulic brake
Description:
High quality components and diversified optional equipments achieved high quality experience and created a new benchmark for commercial vehicles.
Product design realize from 2D to 3D development. The chief engineer is responsibility of technology Center. The thief engineer is the leading of the center, project engineers, engineers, assistant engineers, technicians are graded responsible manner to improve the design and develop the lightweight body design and exterior acceleration noise .The research are repeatedly won the Suzhou municipal technology innovation, research and other awards .
Specification:
| Model | MD6601 |
| Overall Dimension | Length (mm) | 5,995 |
| Width (mm) | 2,150 |
| Height (mm) | 2,660 |
| Wheel base (mm) | 3,308 |
| Vehicle Weight | Curb (kg) | 3,220 |
| Gross (kg) | 4,710 |
| Seating capacity | Pcs | 10~19 |
| Fuel tank (L) | 65 |
| Tires | Quantity | 6+1 |
| Size | 7.00-16 |
| Engine | Model | JX493ZLQ |
| Emission Level | Euro II |
| Manufacturer | JMC |
| Displacement (cc) | 2,771 |
| Max. power (hp/rpm) | 109/3600 (80kw/3,600rpm) |
| Max. torque (Nm/rpm) | 260~285/2100 |
| Gearbox | GETRAG JC528 |
| Brake | Hydraulic brake |
| Body Structure | All metal type, semi-integral body |
| |
| Standard Configuration |
| 1. Laminated front windshield & tempered rear windshield |
| 2. Aluminum sliding side window & metal bracket rear view mirror |
| 3. One driver door, one manual folding passenger door |
| 4. Normal sofa seat, 2+1 layout, 18+1 seats capacity, safety belt for all passengers |
| 5. PVC floor |
| 6. MP3 player, 2 speakers |
| 7. Defrosting system for front windshield |
| 8. Driver fan |
| 9. Rear luggage box |
| 10.Normal interior |
Factory:
1, Advanced production line:
2, Experienced technician & workers
3, Stable quality with Competitive price
4, Technical support & after sales service
